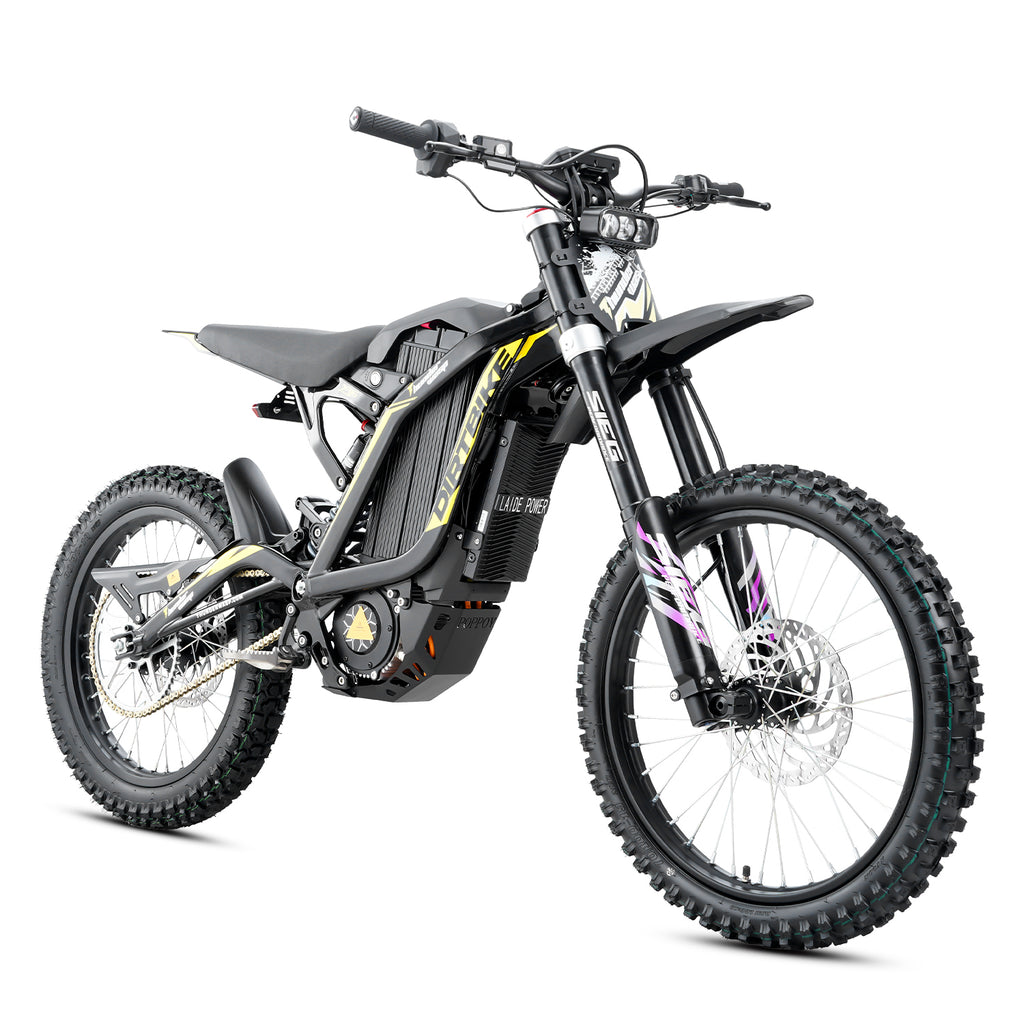

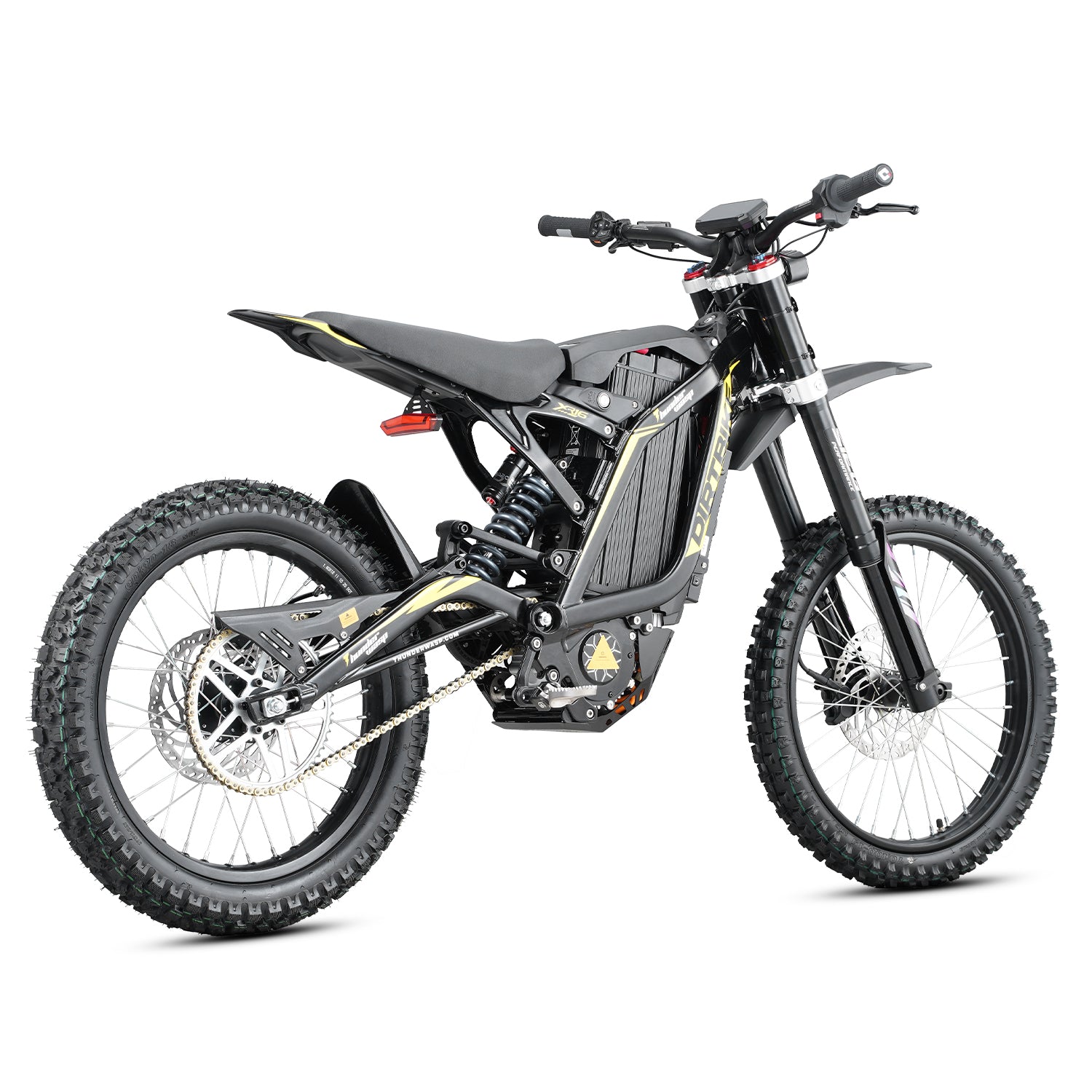

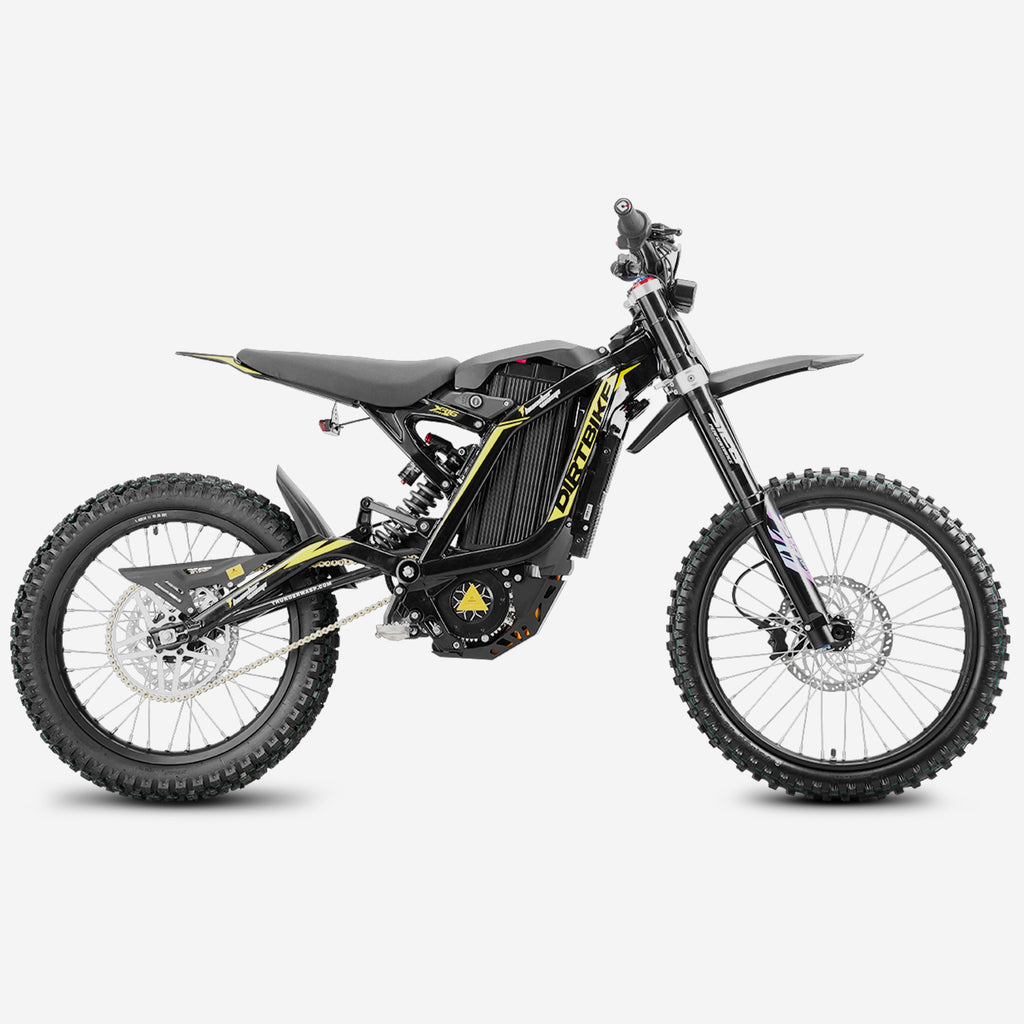

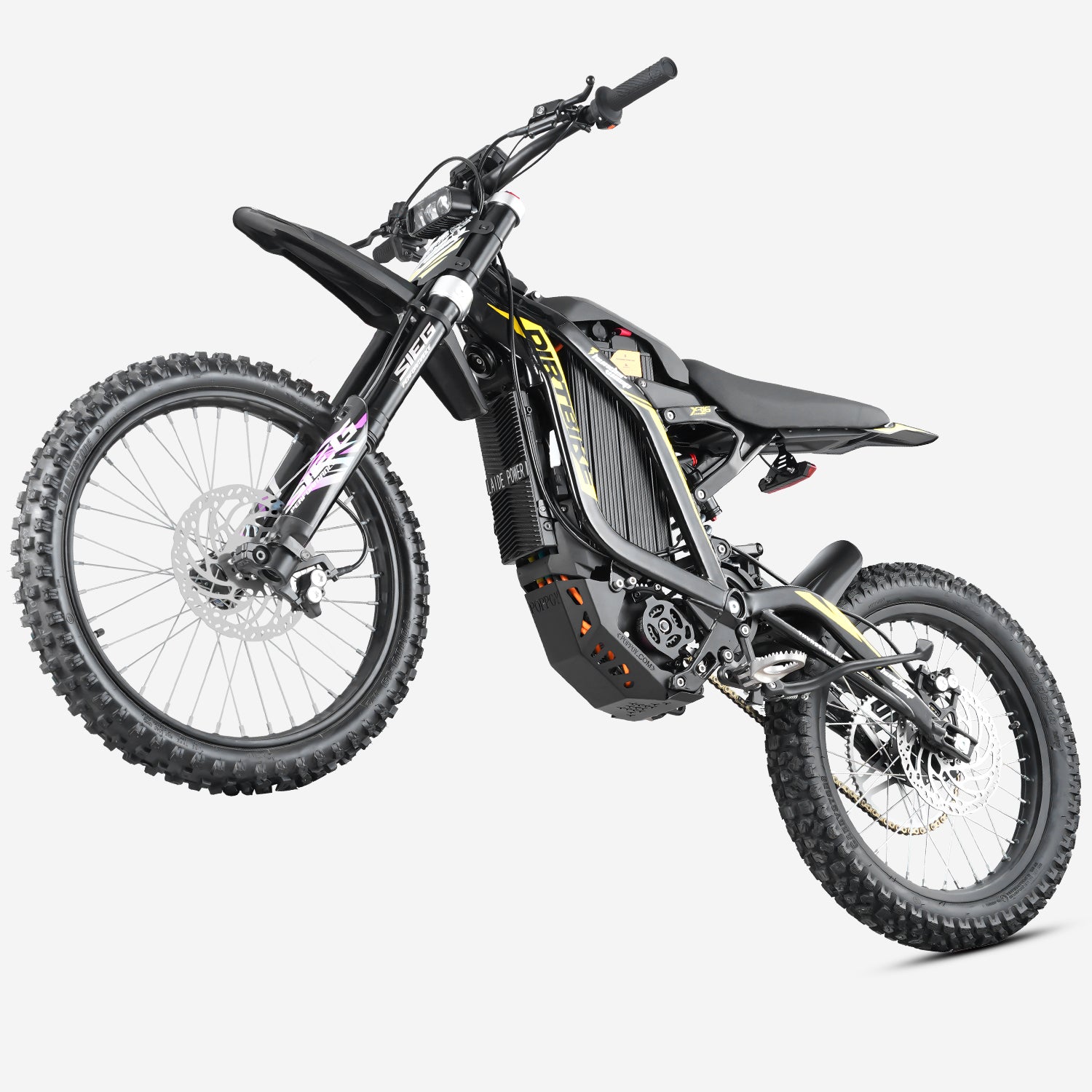

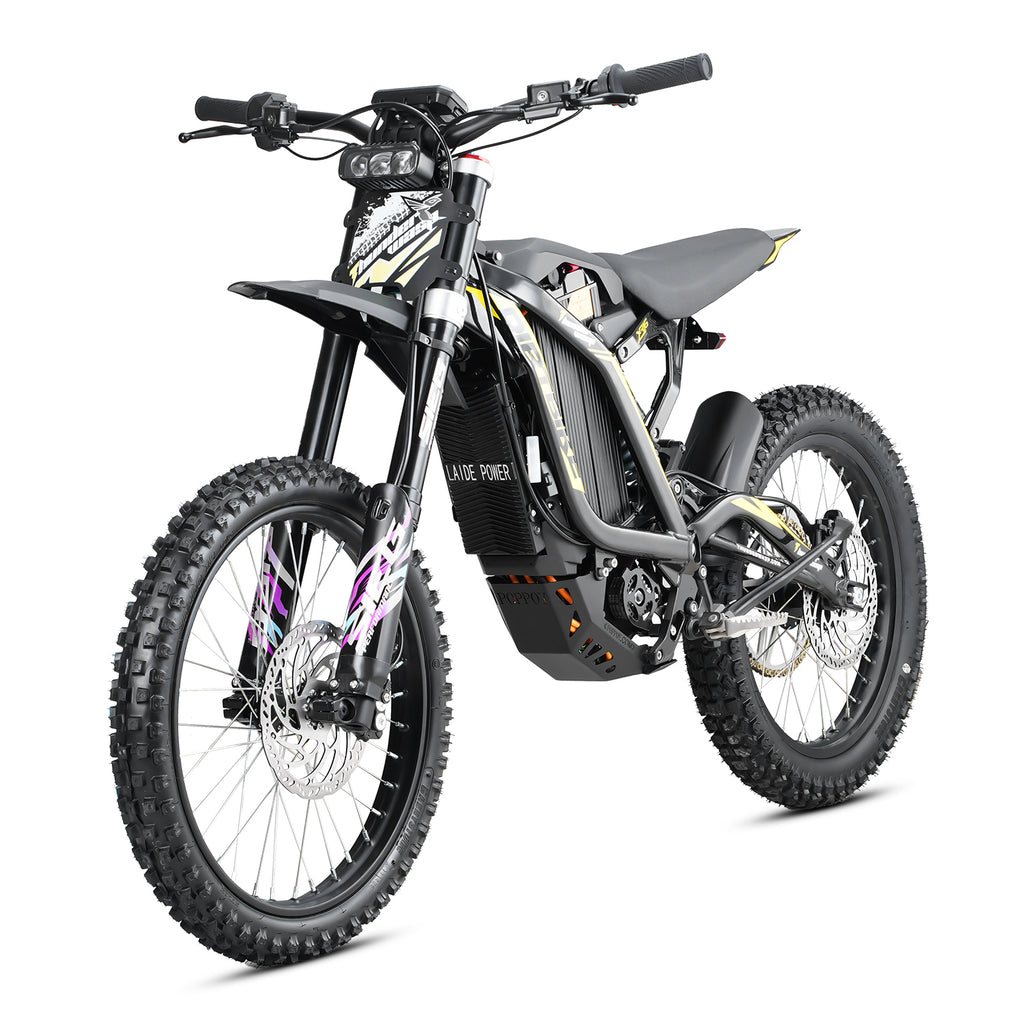

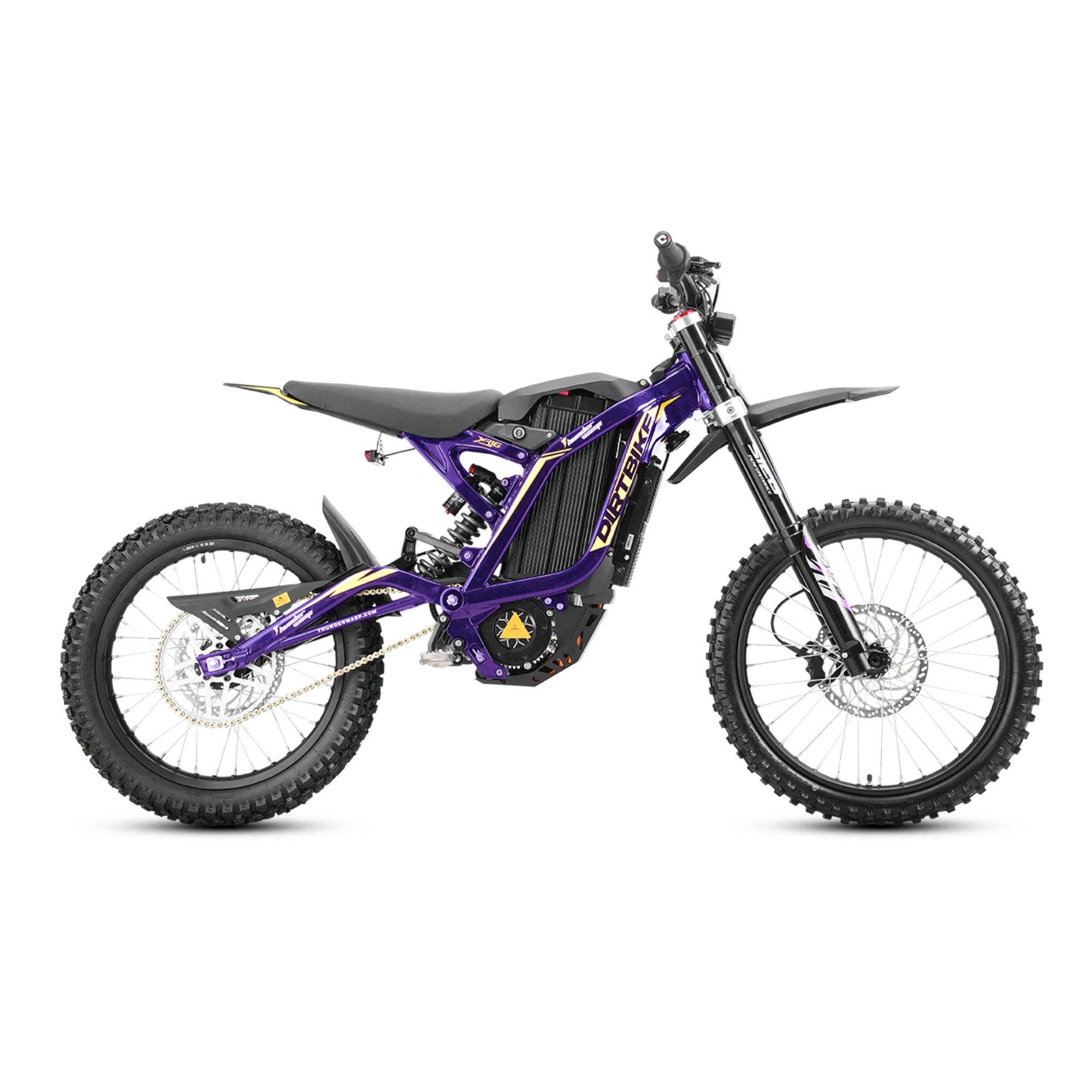

High-Performance Off-Road Electric Dirt Bike

$4,799.00 Sale • Save $500.00

Make high performance features part of your next E-Moto. With all the speed, and tech you could want, the XR 16 is built from automotive-grade alloy steel and rockets from 0–30 MPH in just 3.0 seconds. A fully tunable controller and Pro-tuned adjustable suspension make it a true contender in its class whether you’re racing or riding. The ThunderWasp XR 16 carves with confidence, grips every line, and stops on a dime.

3 - 9 Days Delivery to Shipping Areas
DOES NOT Support Overnight Delivery

Our limited 1-YEAR warranty covers all ThunderWasp bikes. All components and parts are promised zero material, quality, and workmanship defective. We will provide replacement item(s) for free if there's such issue(s) to find during the warranty period.The Warranty Period begins (no need to register) upon your receipt of the ebike and shall end immediately upon the earlier of the end of the Warranty Period.

User's manual

Body color Bright Black

Adding to Cart Added to Cart

Buy it with

XR 16 | UNLEASH THE BEAST

High Performance Powertrain & Suspension

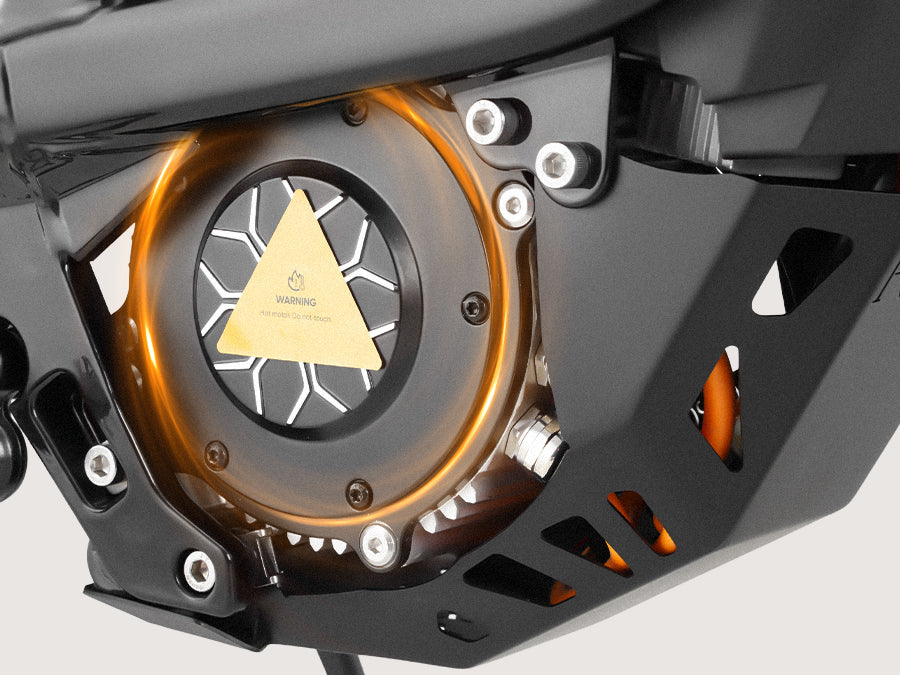

16000W Peak Power Mid-Drive Motor

The ThunderWasp XR 16’s 8.5kW permanent magnet motor is coupled with a compact constant mesh gear reduction to boost torque to the rear wheel. The resulting 460Nm / 339 lb-ft leads this off-road category to maximize acceleration.

Gradeability: 45° - 55°

Slideshow Image 1

High Performance Powertrain & Suspension

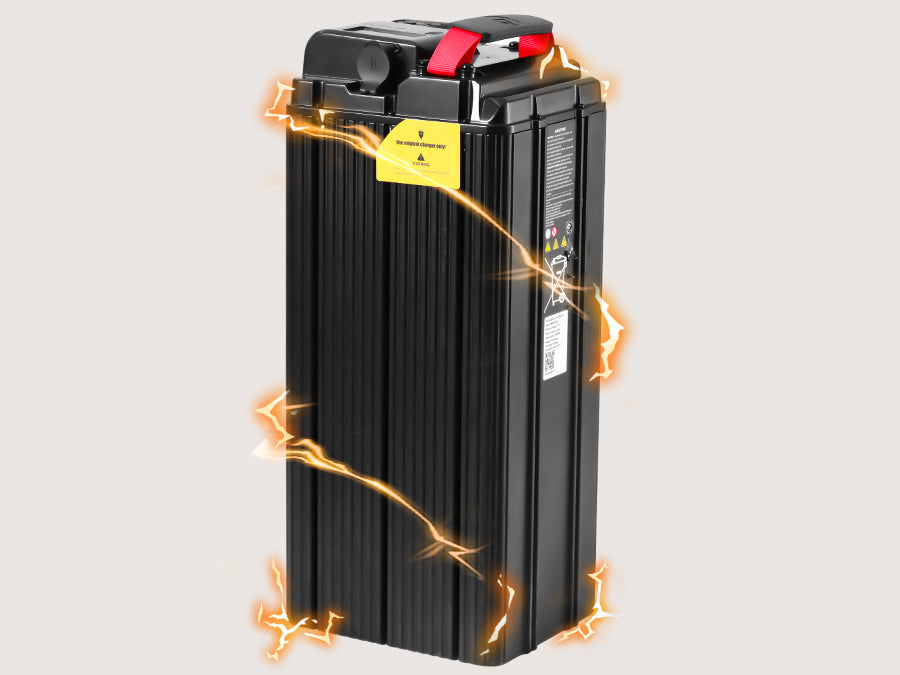

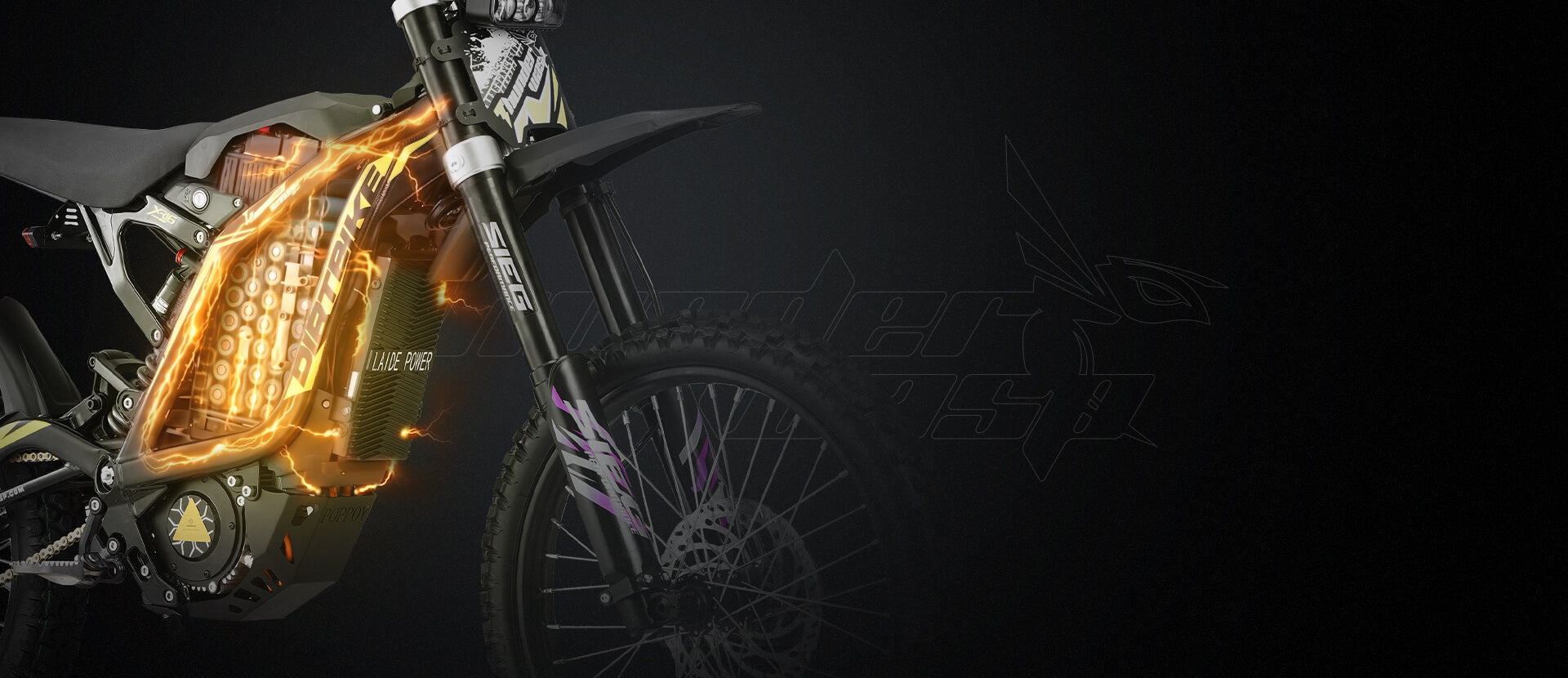

21700 72V40Ah High Performance Lithium Battery

72V40ah battery pack for XR 16, equipped with safe and efficient battery management module, making its output powerful and stable. The 2880Wh replaceable lithium-ion battery can be replaced in under 20 seconds to keep the ride going nonstop.

Charging Time：4 Hours (90%)

Slideshow Image 2

High Performance Powertrain & Suspension

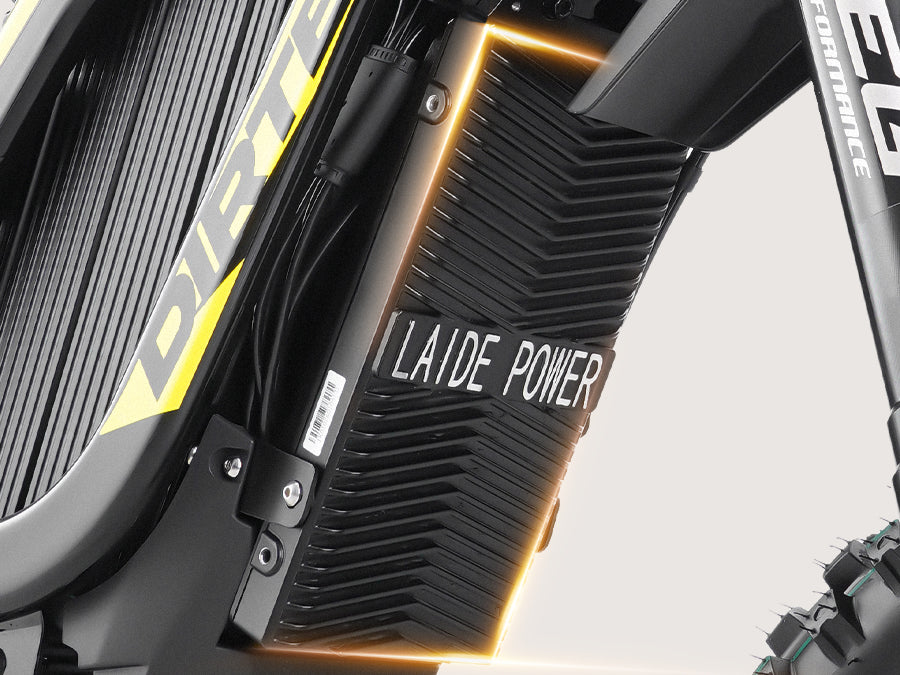

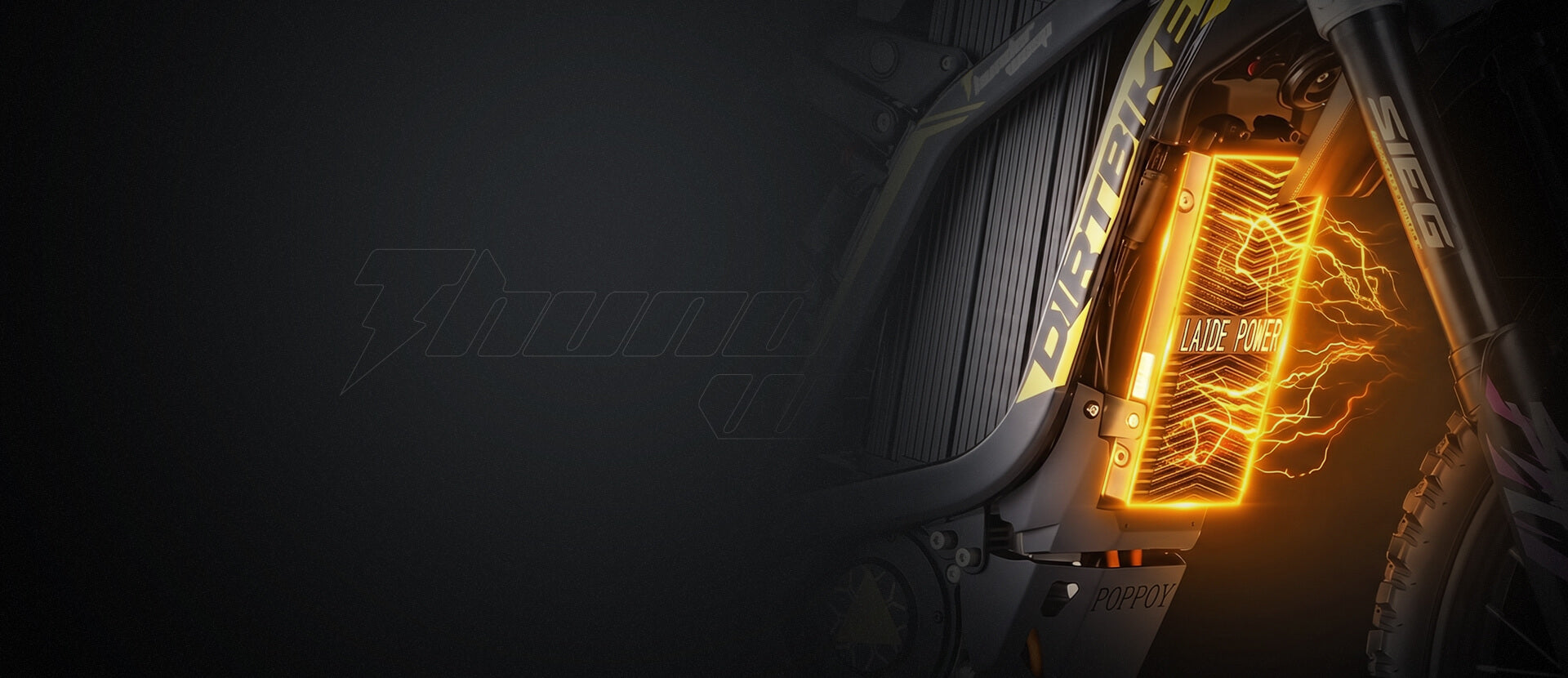

Independently Designed Foc Controller

ThunderWasp independently designed and developed, multi-curve compound algorithm program, real-time monitoring of throttle turning angle, speed, motor torque and current intensity, and will continuously analyze and learn your daily riding data to make it fit with your riding habits.

Peak Current: 200A High-Output

Slideshow Image 3

High Performance Powertrain & Suspension

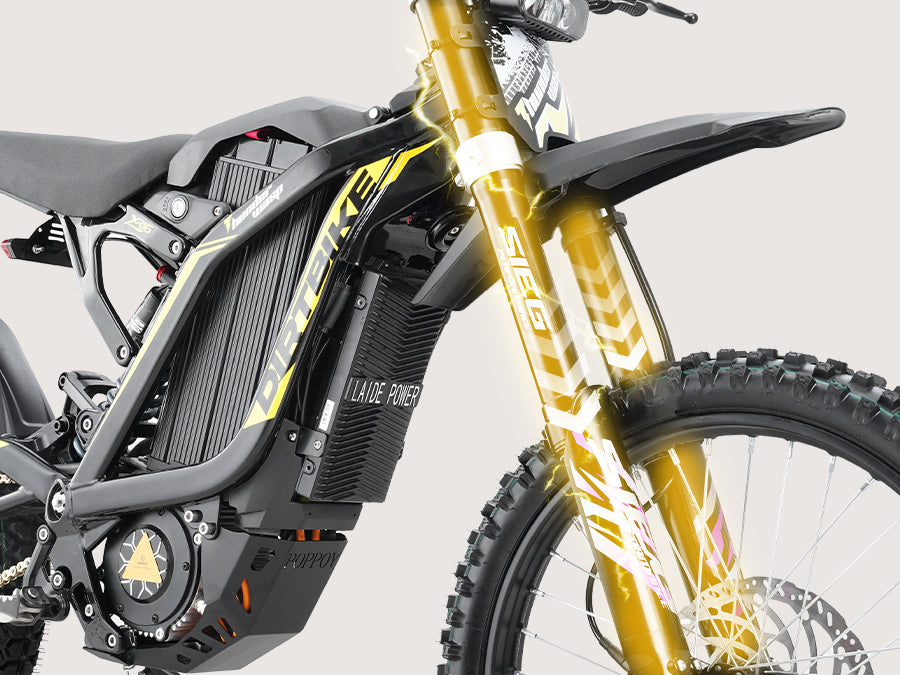

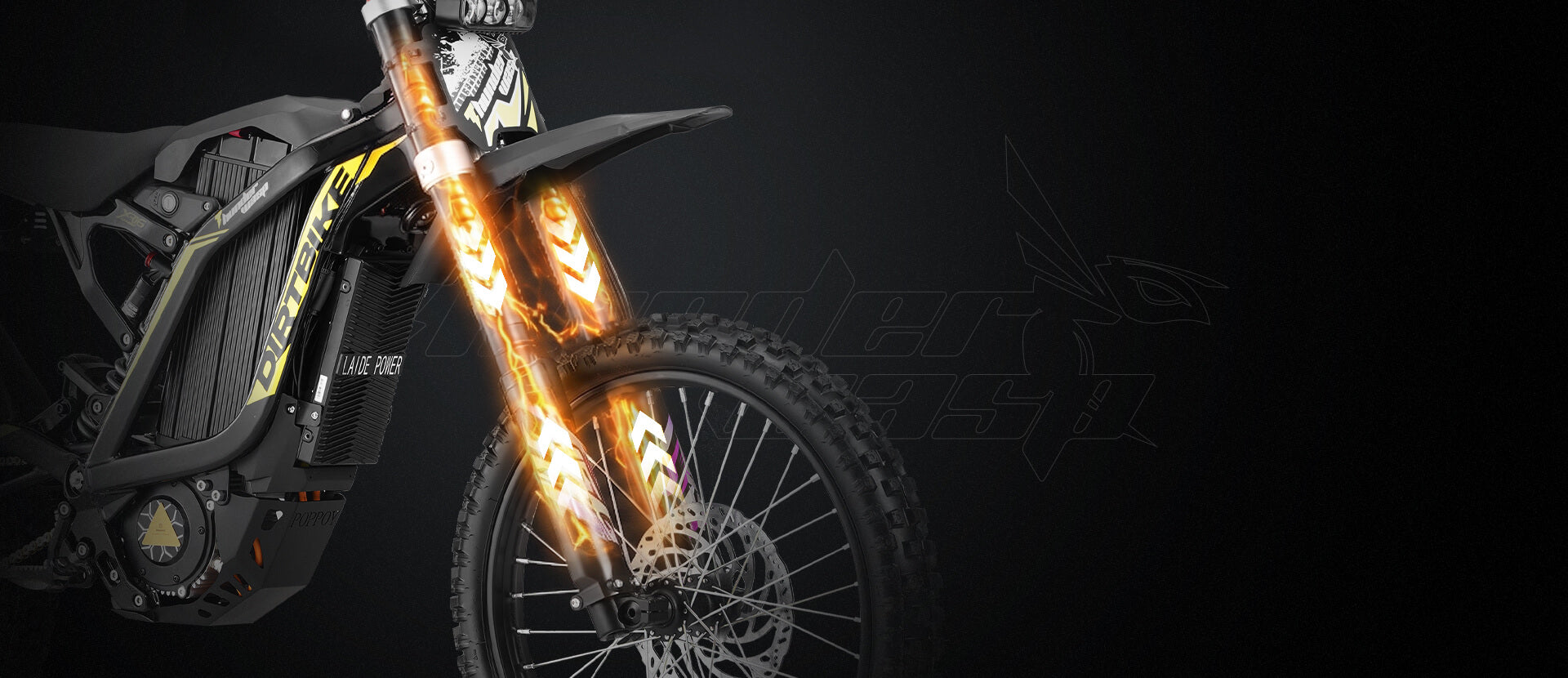

Dual-crown Front Fork

The XR 16 integrates air suspension with spring damping to deliver riders unparalleled comfort and control. Its adjustable spring damping feature further enhances performance by slowing the spring's movement, ensuring a refined and precise shock absorption experience.

Travel: 200 mm

Slideshow Image 4

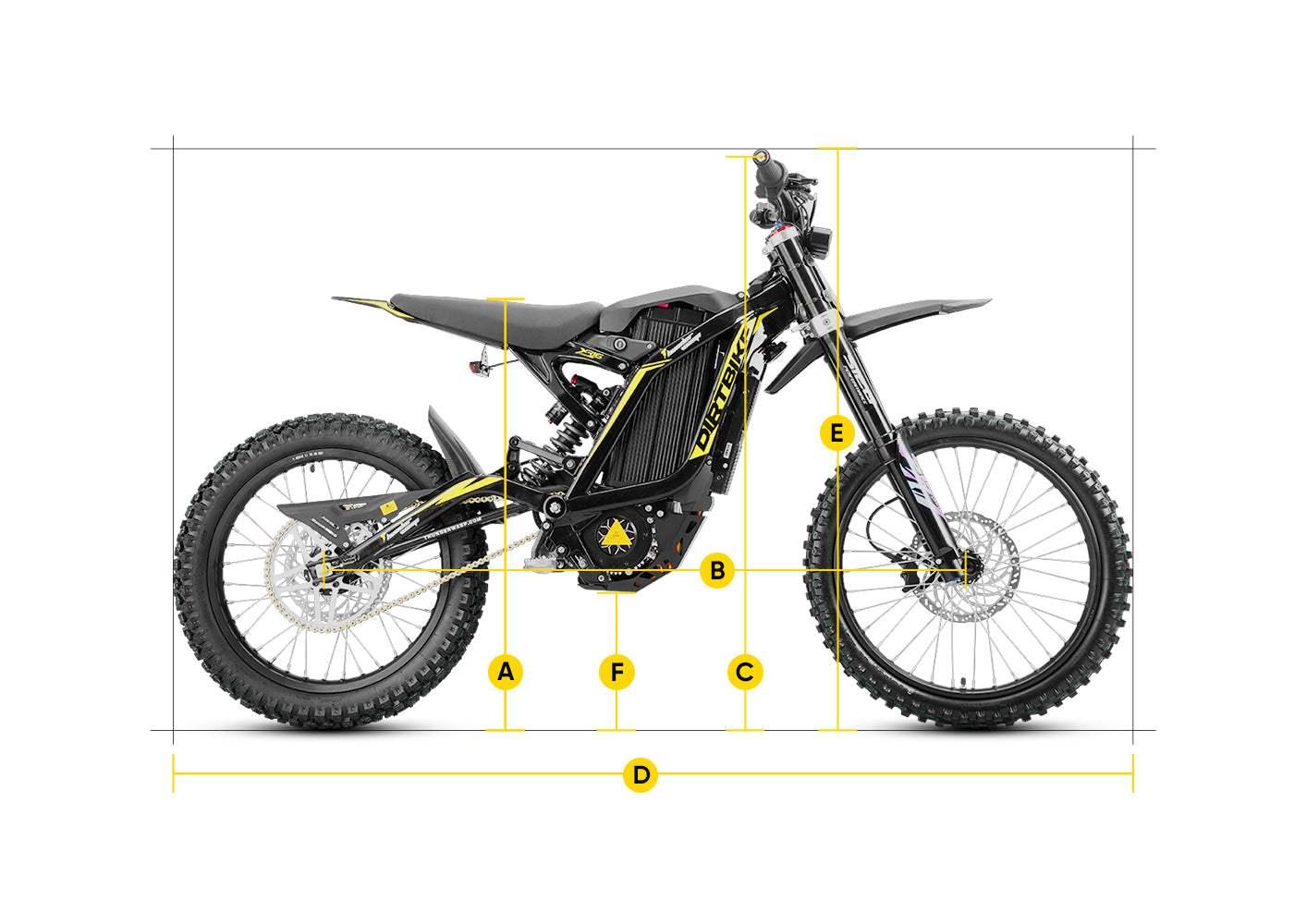

Size & Geometry

Recommended Rider Height: 5'5" - 6'3" or 165cm - 190cm

Ⓐ - Seat Height: 32.2" or 82cm
Ⓑ - Wheel Base: 49.6" or 126cm
Ⓒ - Handlebar Height: 41.1" or 104cm
Ⓓ - Total Length: 74.0" or 188cm
Ⓔ - Total Height: 42.1" or 107cm
Ⓕ - Ground Clearance: 10.2" or 26cm

XR 16: Precision Craftsmanship In Every Detail

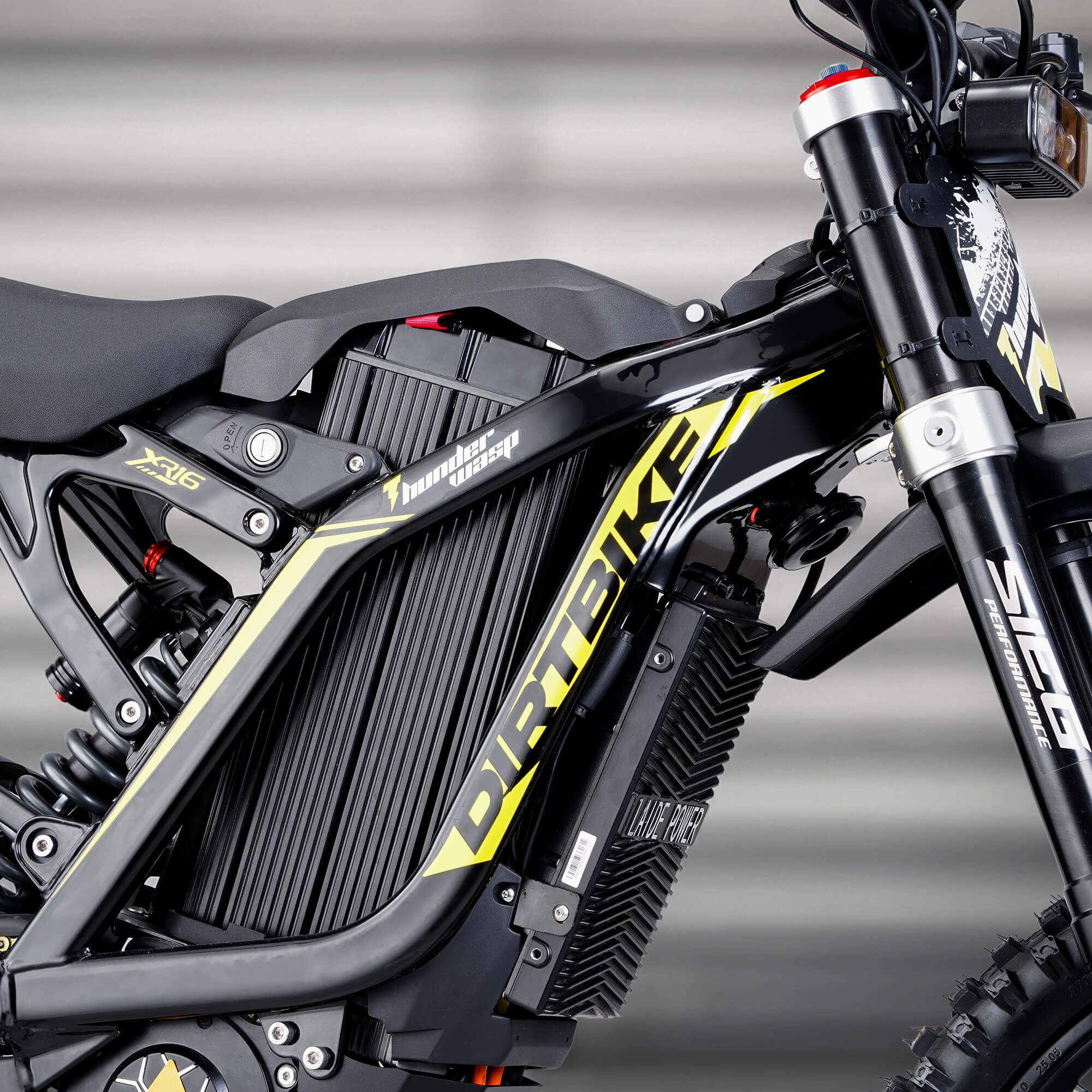

FRAME

With a 420 automotive‑grade alloy steel frame and swingarm, the XR 16 offers an ultra‑durable foundation with superior strength and impact resistance that delivers confidence for even the most aggressive off‑road riders.

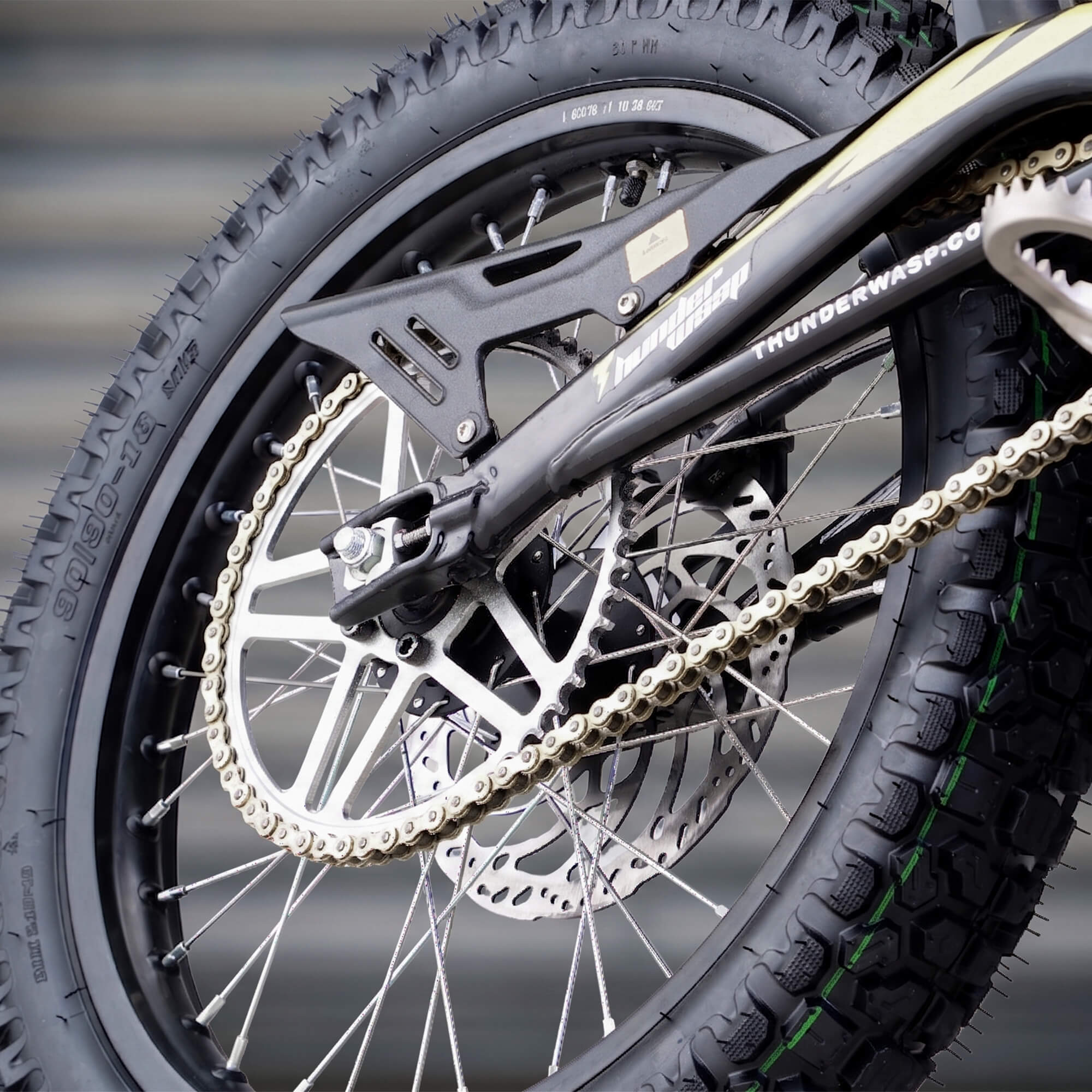

CHAIN DRIVE

Experience crisp acceleration and agile handling thanks to the XR 16’s rugged 420 chain — built to handle tough trails while keeping unsprung weight low, delivering reliable power transfer ride after ride.

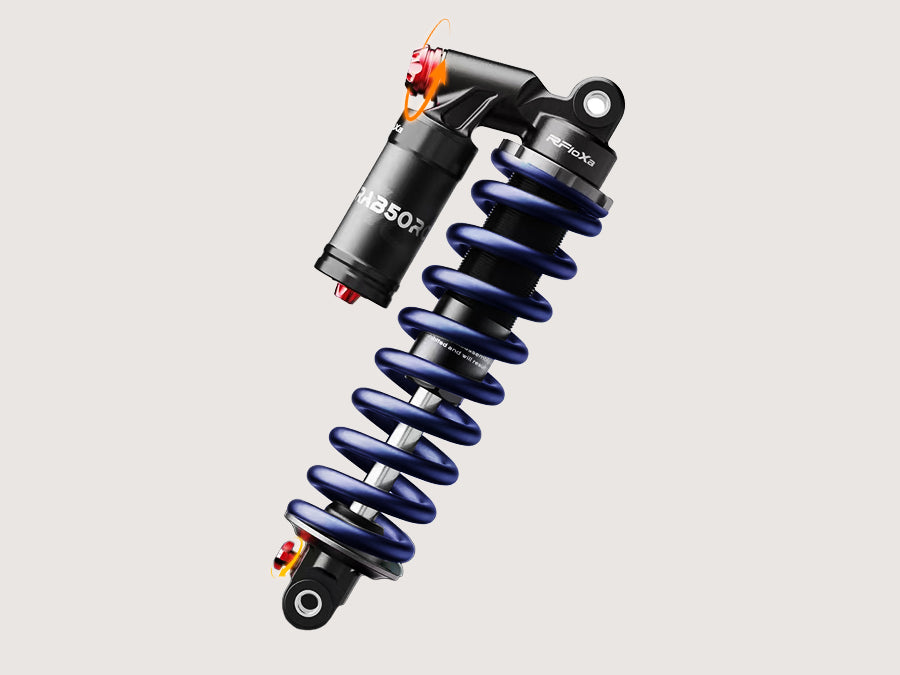

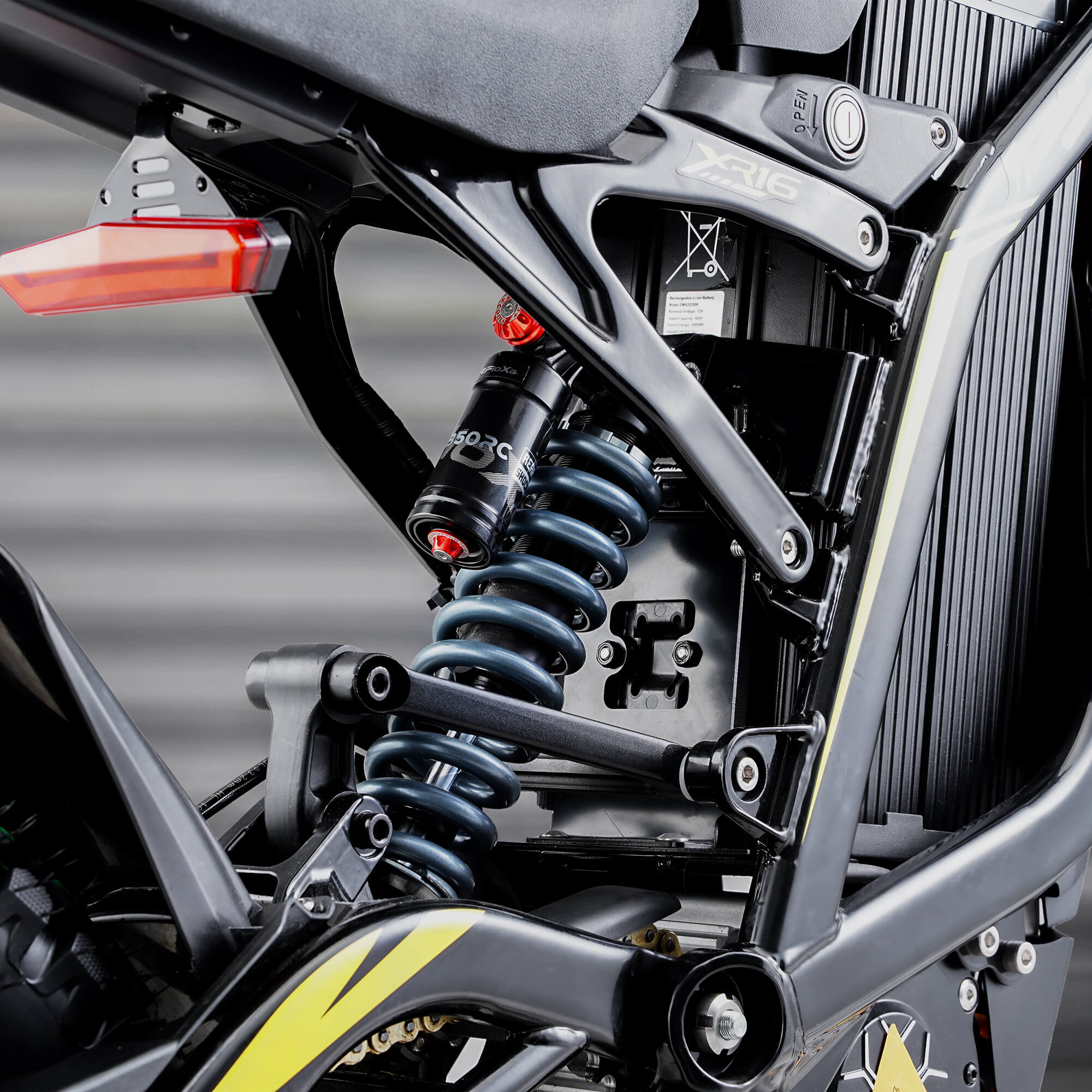

SUSPENSION

Factory-tuned for aggressive enduro riding and heavy-duty payloads, the XR 16's 550-lb spring suspension offers a stable, bottoming-resistant feel for every type of terrain.

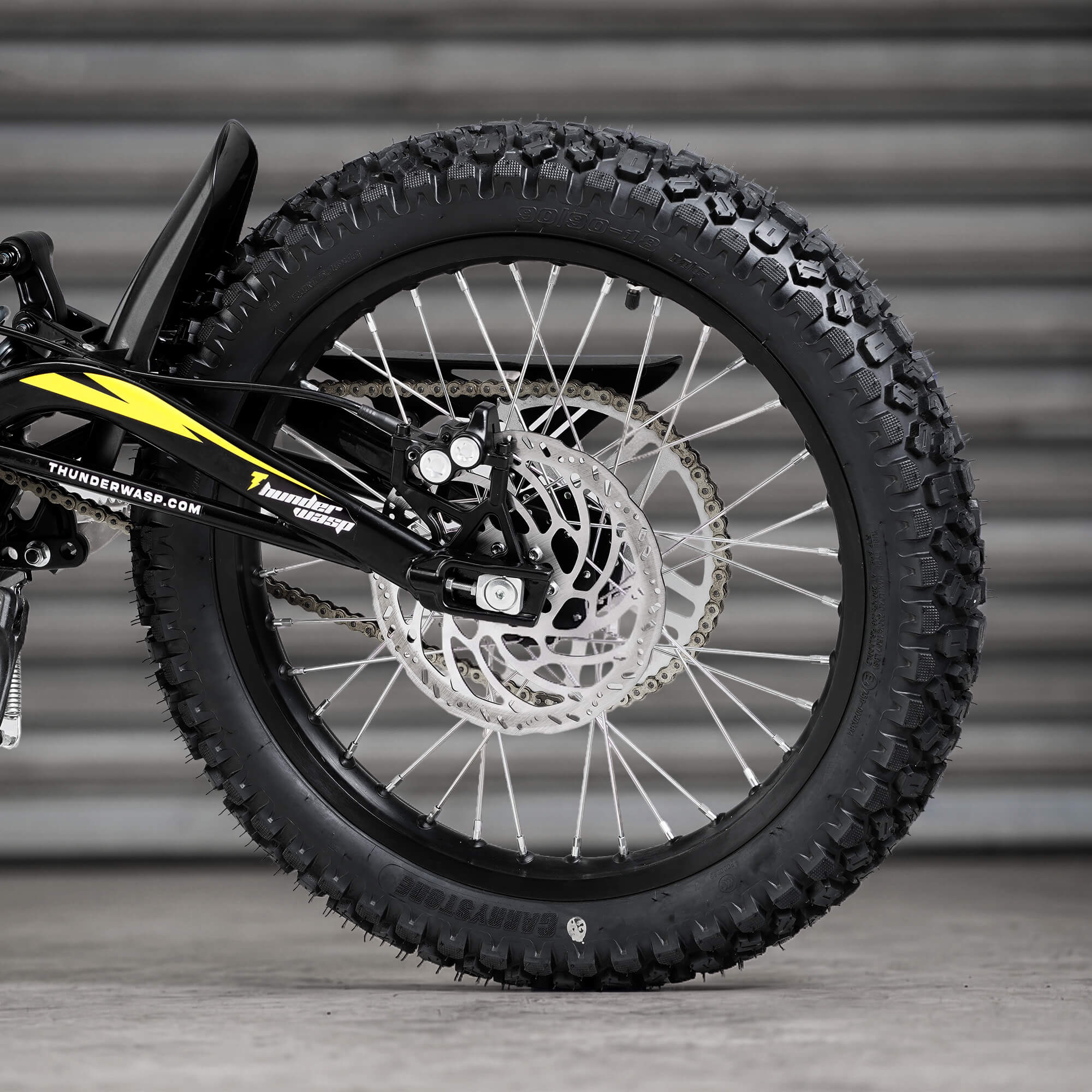

WHEELS & TIRES

The ThunderWasp XR 16 is equipped with knobby tires—19" in the front and 18" in the rear—designed to maximize grip and stability on loose terrain. Its aluminum spoked rims add flexibility and absorb shock, making them ideal for off-road conditions by enhancing durability and handling on rugged, uneven trails.

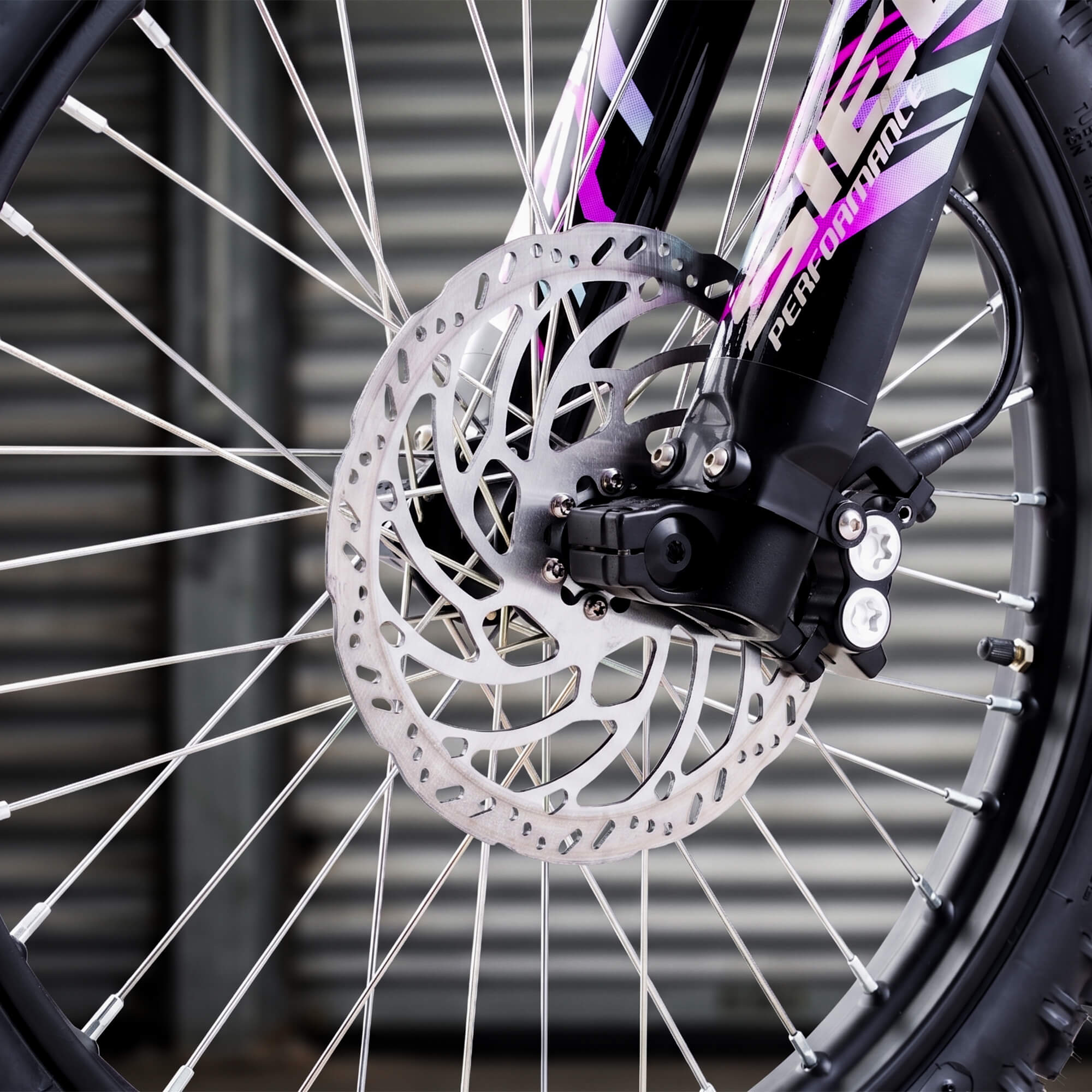

BRAKES

The ThunderWasp XR 16’s left-hand rear brake serves up maximum control right at your fingertips. The dual piston calipers on the front rotor (220mm) and rear (220mm) are DOT hydraulic motorcycle brakes, creating comforting control in virtually any riding scenario.

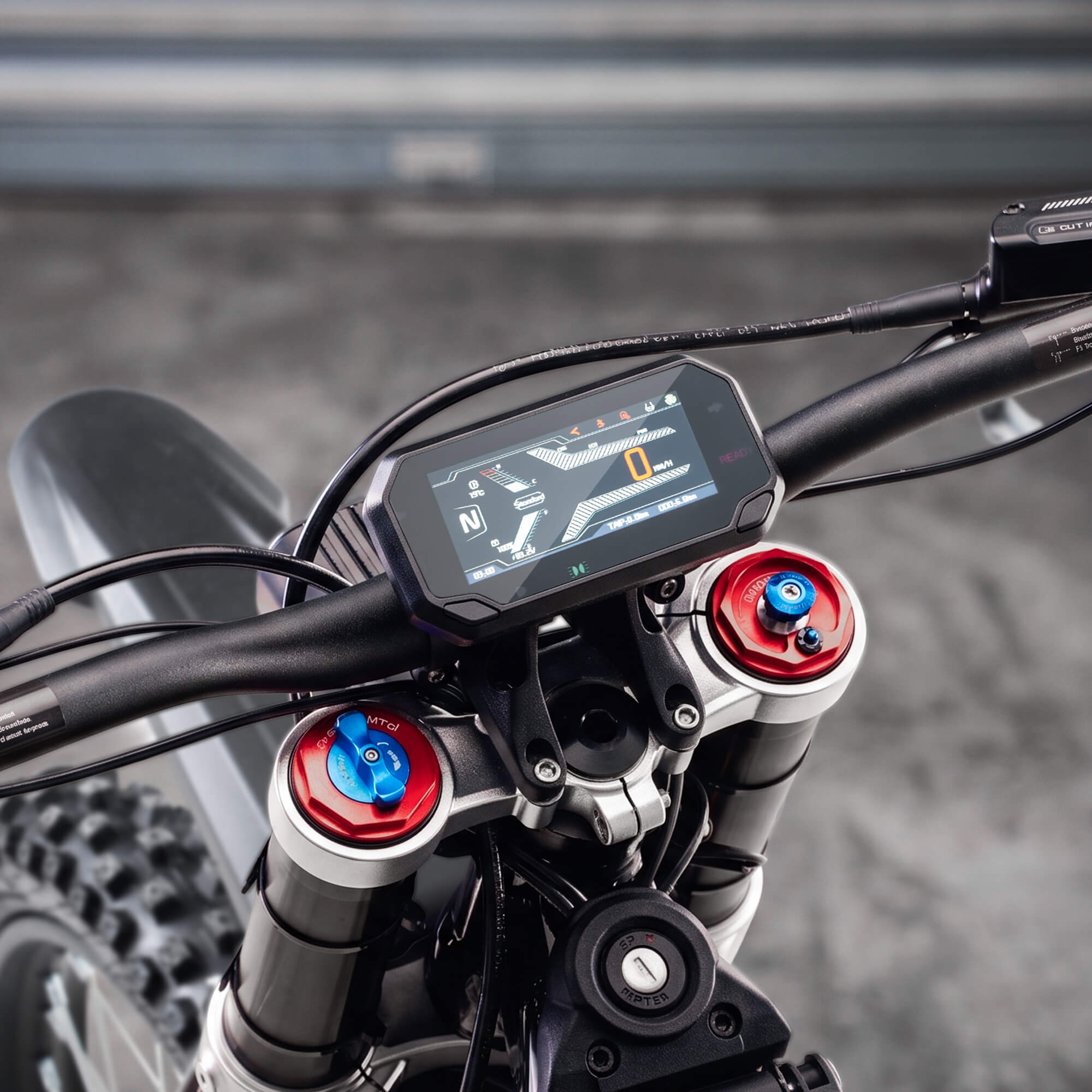

DASHBOARD

The ThunderWasp XR 16 features a sophisticated full-color TFT dash with 3 factory ride modes (ECO, Standard, and Sport). Take advantage of features like Hill Hold, regen rate adjustments, a tip-over sensor that cuts throttle if you go down, and cruise control—all selectable through the intuitive interface of the dash menu.

EXPLORE MORE ABOUT XR 16

Technical Specifications

*To ensure uninterrupted suppluying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Performance

  • Top Speed
  • 56 MPH
  • Max Torque
  • 460 Nm / 339 Lb-ft
  • Climbing Ability
  • 55 Degrees
  • 0-30 MPH Accelerated
  • 3.0 Seconds
  • Range
  • 62 Miles (Eco Mode)
  • Weight Capacity
  • ≤ 240 Lbs To Ensure The Performance and Safety

Mechanicals

  • Brake Type
  • 4-Piston DOT 4.0 Hydraulic Disc Brakes
  • Power Delivery
  • Gearbox and Chain Driven
  • Front Brake Rotor
  • 220mm (φ) x 2.0mm (t) Steel Rotors
  • Rear Brake Rotor
  • 220mm (φ) x 2.0mm (t) Steel Rotors
  • Frame Material
  • 420 Alloy Steel
  • Vehicle Weight With Battery
  • 152.1 Lbs
  • Front Fork Travel
  • 200 mm
  • Rear Suspension Travel
  • 70mm
  • Motor Type
  • Mid-drive Permanent Magnet Motor, Brushless, IPX6

    Electrics

    • Max Output Power
    • 16000 Watts
    • Battery Capacity
    • 2880 Watt·hour (72V 40Ah)
    • Cells Type
    • 50S Lithium Ion SAMSUNG
    • Nominal Power Output
    • 8500 Watts
    • Battery Charger
    • 72V 10A  Quick charger, 4-5H charge time
    • Display Type
    • LCD, Motors Switch, USB Charge Port
    • Head Light
    • 2,500 Lumens (25W)  LED with Built-in Horn
    • Tail Light
    • LED with Integrated Brake Signal Blinker



      FAQ & Reviews

      Mixed trail riding (hills, dirt, some flat sections): 50–70 km (31–43 miles). Pavement cruising: up to 90 km (56 miles). Real range depends on terrain, rider weight, and throttle use.

      Not at all. Most 72V bikes (including ours) offer different ride modes, such as Eco or Low Speed mode, which soften power delivery so that beginners can start in a lower-power mode and switch to Sport mode as they gain confidence. Having extra power available is safer than being underpowered when you need it.

      Like most high‑powered e‑dirt bikes, this model is designed for off‑road use only (trails, motocross tracks, private land). Street legality depends on your local laws.

      IMPORTANT NOTE: NOTICE: THIS BIKE IS SOLD FOR OFF-ROAD OR TRACK USE ONLY. IT IS SPEED AND POWER LIMITED TO COMPLY WITH FEDERAL, STATE AND LOCAL LAWS. PLEASE DO NOT BYPASS THIS RESTRICTION OR MODIFY IT TO GO FASTER.. THE BUYER TAKES FULL RESPONSIBILITY OF THE PROPER USE OF THIS PRODUCT WHICH MAY OR MAY NOT CONFORM TO ALL APPLICABLE LAWS IN THE REGION IT IS RIDDEN.
